Photovoltaic Cleaning UAVs

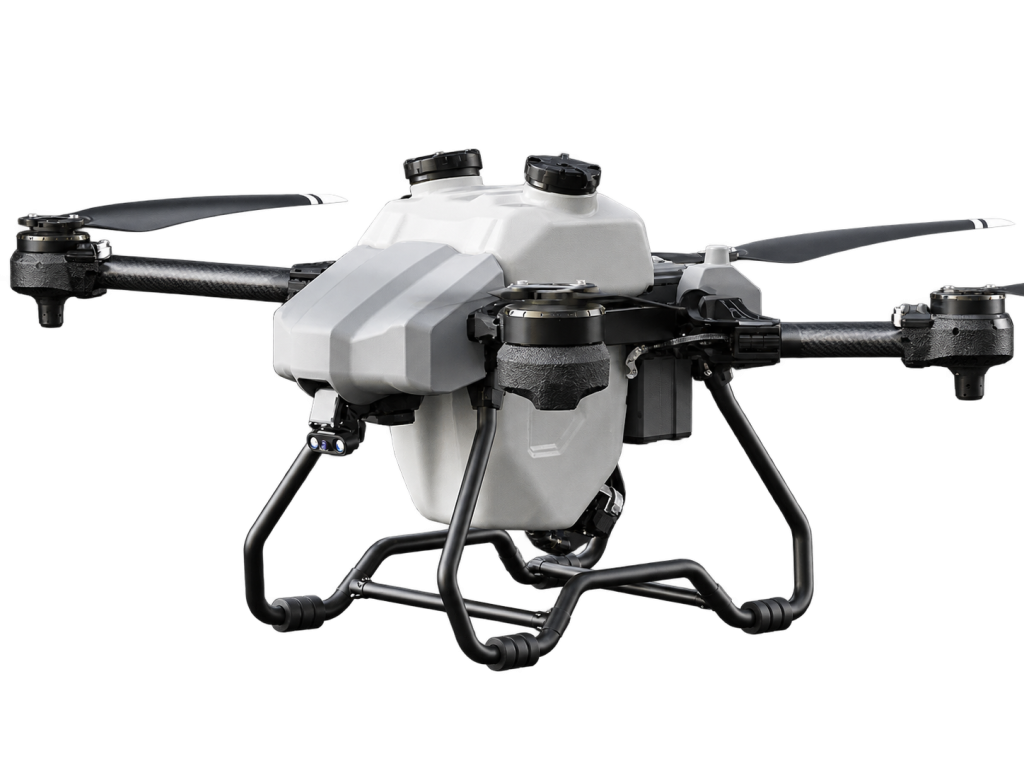

HV50 Photovoltaic Cleaning UAV
50L High-Pressure Cleaning System for Large-Area Solar Panel Maintenance
Designed for large-area photovoltaic cleaning, the HV50 combines a 50 L tank, a high-pressure cleaning system and a stable UAV platform for efficient outdoor maintenance of solar arrays. The 2330 mm wheelbase frame and 18S power system deliver stable flight control for…
50 L
Tank Capacity
2330 mm
Wheelbase
99 kg
Max Takeoff Weight
10 L/min
Spray Flow Rate
Key Highlights
Tank Capacity
50 L
Wheelbase
2330 mm
Max Takeoff Weight
99 kg
Spray Flow Rate
10 L/min
Product Details

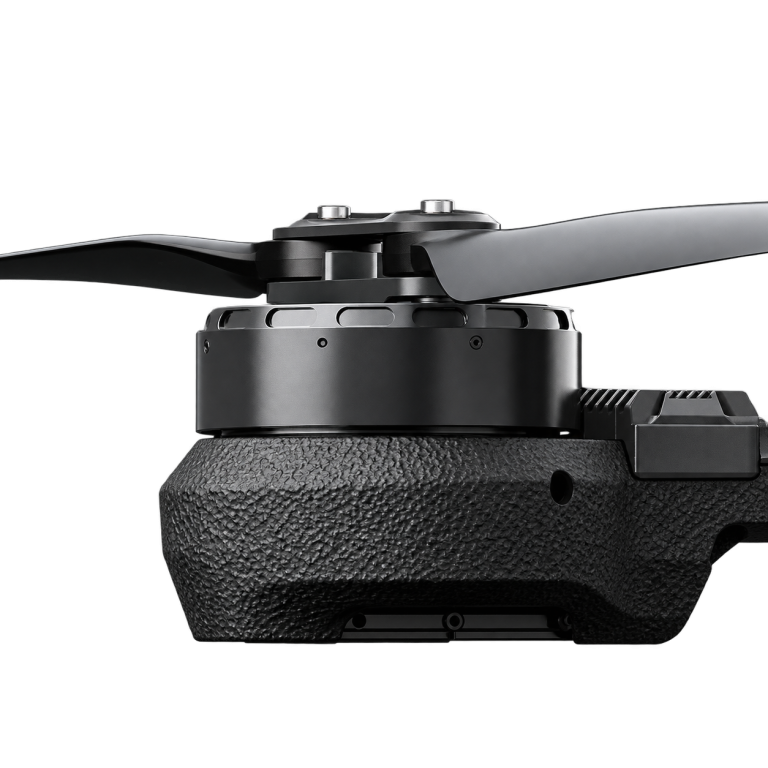

Powerful Propulsion
Large propeller and efficient motor design provide strong thrust and responsive control.

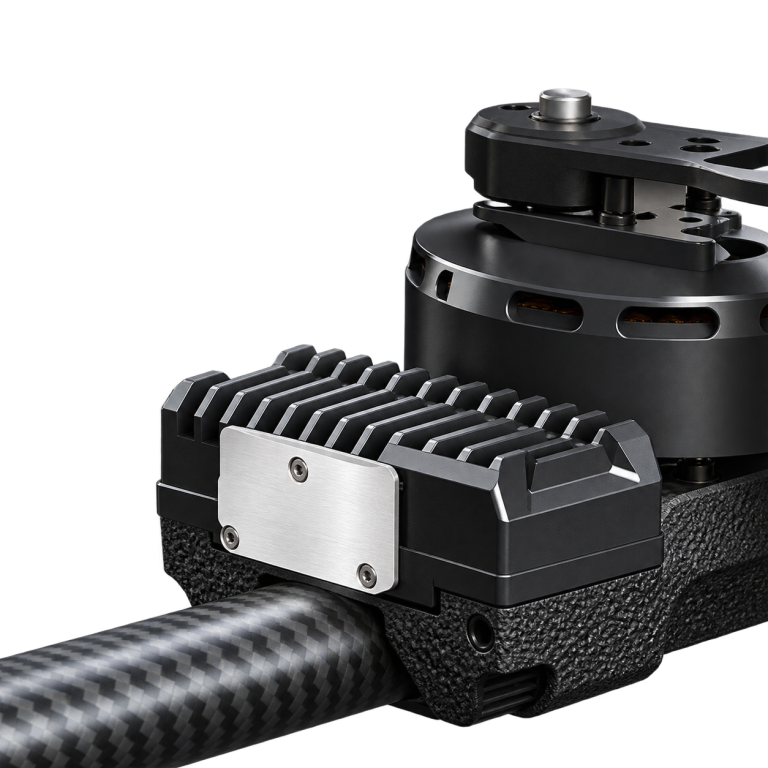

Efficient ESC & Cooling
High-power ESC and optimized cooling support precise control and stable continuous operation.

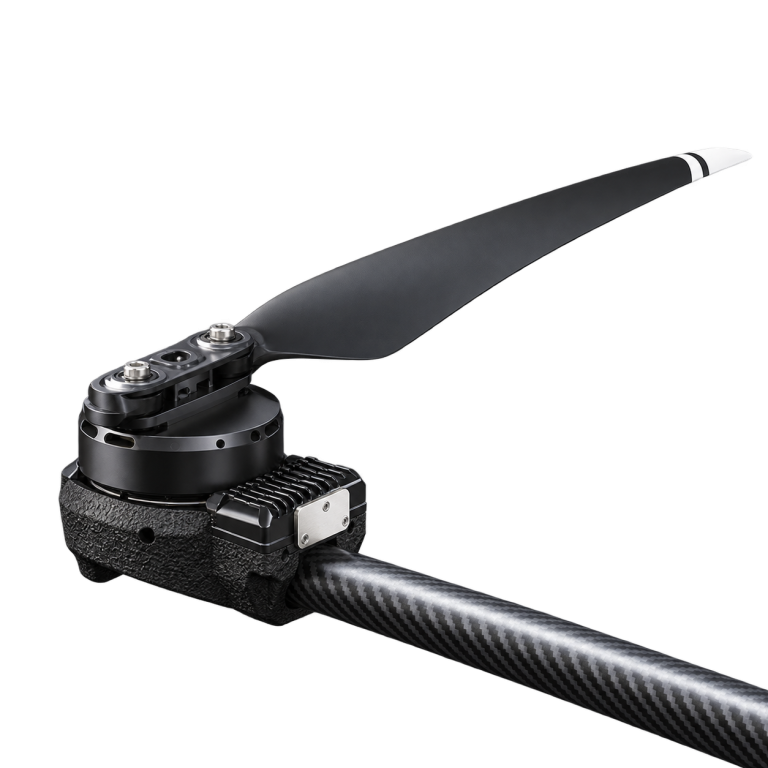

Carbon Fiber Arm
Lightweight carbon-fiber arm structure helps improve rigidity, durability and flight stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Expanded Size | 1905 × 1720 × 815 mm |
| Folded Size | 635 × 1340 × 815 mm |
| Wheelbase | 2330 mm |
| Empty Weight | 35 kg (without battery) |
| Max Takeoff Weight | 99 kg |
| Tank Capacity | 50 L |
| Flight Speed | 5–10 m/s |
| Climb Speed | 5 m/s |
| Operating Height | 0–50 m |
| Spray Flow Rate | 10 L/min |
| Spray Pressure | 0–150 bar |
| Pump Pressure | 16 MPa |
| Operating Temperature | -20°C to 50°C |
| Working Voltage | 75.6 V |
| Battery Capacity | 18S 30000 mAh |
| No-load Endurance | 18 min |
| Working Time | 11 min |
| Materials | PE / PP / PA+GF / Aluminum Alloy |
Looking for Photovoltaic Cleaning UAVs?
Tell us your project requirements, operating conditions and target performance. Our team can recommend a suitable configuration.
